Made in Canada – Cardon Diagnostic Imaging Tables – Echo and Ultrasound Tables – Each

The Made-in-Canada Cardon Echo Echocardiography & Diagnostic Imaging Tables are designed for cardiac ultrasound examinations, offering ergonomic patient positioning and convenient access for sonographers. Available in the Echo 100 (3-section) and Echo 125 (2-section) configurations, both models feature electric height adjustment, Soft Touch footswitch technology and customizable stress echocardiography cut-outs.

Key Features

• Electric Hi-Lo Adjustment: Height range of 19.5″–38.5″ with Soft Touch footswitch control.
• Stress Echo Cut-Out: Customizable cut-out configuration to facilitate apical imaging access.
• 500 lb Lifting Capacity: Suitable for a wide range of clinical patients.
• Retractable Caster System: Dual-lever retractable 4″ casters for mobility and positioning.
• Durable Construction: High-strength seamless tubular steel frame with powder-coated finish.
• Patient Comfort: 2″ foam cushioning with antimicrobial Naugahyde upholstery.
• Customizable Finishes: Over 60 upholstery colours and three frame colours — Gunmetal Grey, Black or White.
• Examination Paper Holder: Included as standard.
• Electrical Requirements: 120V AC, 60 Hz, maximum 2.5A.
• Lifetime Frame Warranty: Manufacturer’s lifetime warranty on the frame, subject to warranty terms.

Available Models

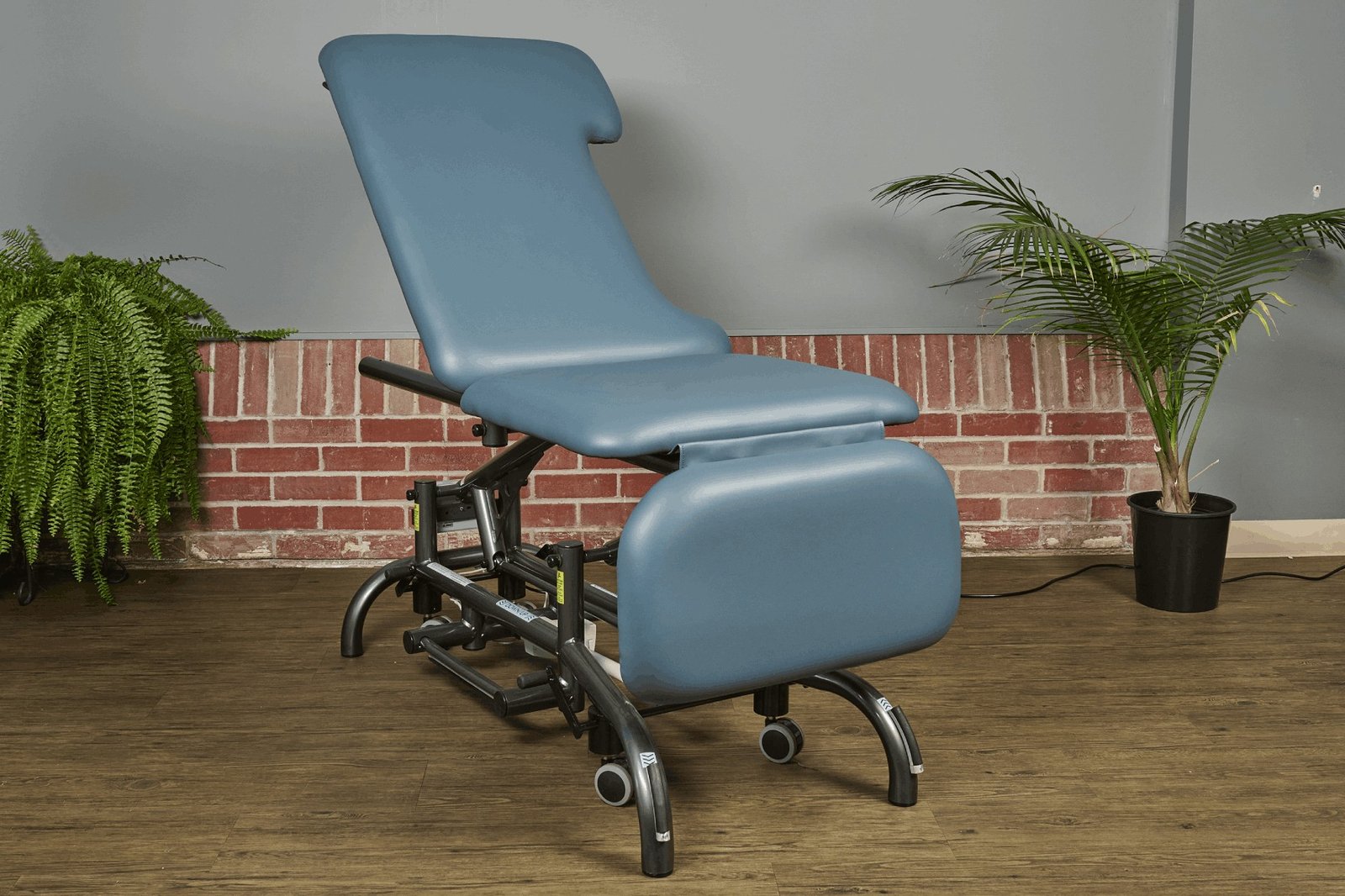

Echo 100 – 3-Section Echocardiography Table

• Gas-spring-assisted backrest adjustment up to 90°.
• Adjustable leg section with positive locking system.
• Fixed centre section.
• Standard dimensions: 27″ W × 77″ L.
• Customizable width from 25″ to 30″.

Echo 125 – 2-Section Echocardiography Table

• Power-assisted backrest with handheld control.
• Fixed leg section.
• Standard dimensions: 30″ W × 79.5″ L.

Optional Accessories: Battery-powered operation, 36″ assist rail and other model-specific accessories are available separately.

Please select your preferred model. Upholstery colour, frame colour, stress echo cut-out configuration, accessories and delivery requirements can be confirmed before ordering.
